To know more about our evaporative cooling pads in one article

2020-05-22

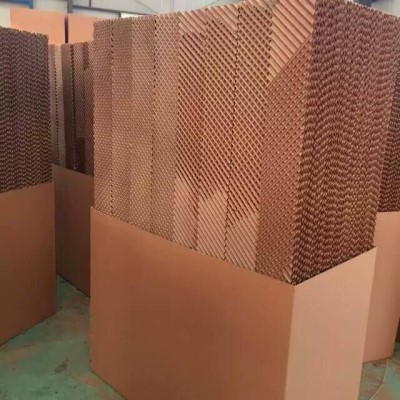

Evaporative cooling pads system uses water as media to cool down the ambient temperature in an eco-friendly manner without polluting the environment.

We use high water absorption 100% wood pulp paper to guarantee longer service life and one drop of water diffuses within 4 to 5 seconds.

The honeycomb cooling pads system costs less in installation by consuming nearly one tenth of the air conditioning system.

Our evaporative cooling pads configuration:

7090 type

95 gsm or 105gsm paper,

Flute: 7mm

Angle: 45°/45°

Size: max 2000mm in height, max 800mm in width, customized height

In most cases, 7090 evaporative cooling pads are applied in fan pad cooling system installed together with ventilation exhaust fans in poultry farms, greenhouses where large area of cooling is required.

5090 type

95 gsm paper

Flute: 5mm

Angle: 45°/45°

Size: customized in dimensions

5090 evaporative cooling pads are mostly used for designing and fabricating air coolers.

Please contact us for details if need 7060,6090 etc.

Features of evaporative cooling pads supplied by Qingdao Wincom Industrial Co., Ltd.

Use special cross link technology with high absorption ability and long service life
Large evaporating surface area, cooling efficiency reaching 80%
Our evaporative cooling pads don’t contain phenol and other chemical substances which easily cause skin allergy. The honeycomb cooling pads are nontoxic and harmless to human body, eco-friendly and energy saving in use.

Applications:

Poultry and livestock farms

Greenhouse and agriculture

Industrial workshops

Commercial building

Evaporative air coolers
